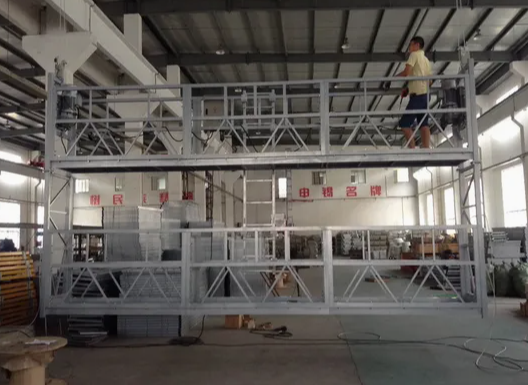

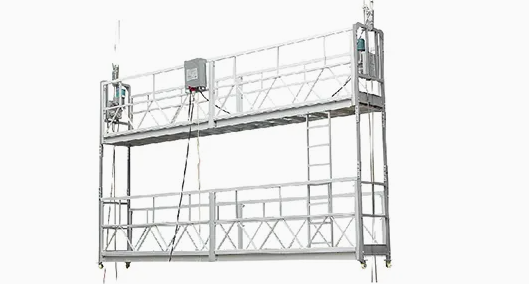

The double-layer aluminum curtain wall gondola is a durable and efficient solution for high-rise building maintenance. Its rated load capacity is 350 kg, supporting tasks such as window cleaning, exterior wall painting and curtain wall installation.
With a working height of 100 meters and a lifting speed of 8-10 meters/minute, it can move vertically quickly. The platform size is 6000x690x3200 mm, providing ample space for workers and equipment.
The platform is driven by a 2.2kW motor and uses φ8.6mm steel wire rope for stability. The rated force of the hoist is 7.84kN, ensuring reliable lifting.
The platform height can be adjusted between 1.27 meters and 1.83 meters, and has a 1.7-meter front beam extension. The 1000 kg counterweight ensures stability and safety during operation.
| Parameter | Value |
|---|---|
| Rated Load | 350kg |
| Working Height | 100m |
| Lifting Speed | 8-10m/min |
| Platform Size (LxWxH) | 6000x690x3200mm |
| Wire Rope Diameter | φ8.6 mm |
| Hoist Rated Force | 7.84kN |
| Motor Model | YEJ100L-4 |
| Power | 2.2kW×2 |
| Voltage | 380V |
| Speed | 1420rpm |
| Torque | 15Nm |
| Suspension Mechanism | Front beam max extension length: 1.7m |
| Adjustable Height | 1.27m - 1.83m |
| Weight | 310kg |
| Counterweight | 1000kg |
Features of Double Decks Aluminum Suspended Platform
Durable Structure: Made of high-quality materials such as aluminum alloy and hot-dip galvanized steel, ensuring long-lasting performance.
Double Platform Design: The double-deck gondola platform features two levels, providing more space for workers and tools, improving productivity.
Adjustable Length: The platform length is adjustable to accommodate a variety of building sizes and project requirements.
Heavy Load Capacity: The platform has a load capacity range from 500kg to 2000kg, capable of handling heavy-duty tasks.
Versatile Power Options: The platform has a variety of voltage options, including 380V/50Hz and 220V/60Hz, to accommodate international standards.
Stable Lifting Mechanism: The lifting system uses high-strength steel cables and LTD series hoists for reliable lifting and lowering.
Advantages of Double Decks Aluminum Suspended Platform
Increase work efficiency: The double-layer design allows more workers and tools to be safely used at the same time, reducing downtime.
Enhanced safety: The platform is equipped with a safety lock and anti-tilt system to minimize risks during operation.
Customizable: Adjustable length and working height provide flexibility for various projects, ensuring that the platform meets your specific needs.
Long-term durability: Made of sturdy materials such as aluminum alloy and galvanized steel, it can ensure long-term performance even in harsh working environments.
Global compatibility: Suitable for different international power standards, it is ideal for global use.
Applications of Double Decks Aluminum Suspended Platform
Double-layer hanging baskets are widely used in the following applications:
High-rise building construction: Provides safe and reliable access to external surfaces.
Exterior wall installation: Ideal for installing exterior cladding, including glass, aluminum and other materials.
Elevator installation: Ideal for lifting equipment and materials when installing elevators in high-rise buildings.
FAQs of Double Decks Aluminum Suspended Platform
1. What is the maximum load capacity of the double-layer suspended platform?
The platform has a rated load capacity of 350 kg, ensuring that it can handle workers and equipment during maintenance tasks.
2. What is the working height of this suspended platform?
The platform can work up to 100 meters high, suitable for high-rise building tasks.
3. How fast can the platform be raised and lowered?
The platform has a lifting speed of 8-10 meters/minute, which allows for efficient vertical movement.
4. What type of wire rope does the platform use?
It uses φ8.6 mm wire rope for lifting, ensuring durability and strength during operation.
5. What is the weight of the platform?
The platform weighs 310 kg and is equipped with a 1000 kg counterweight for stability.
