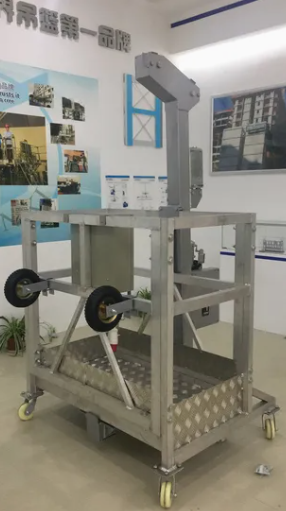

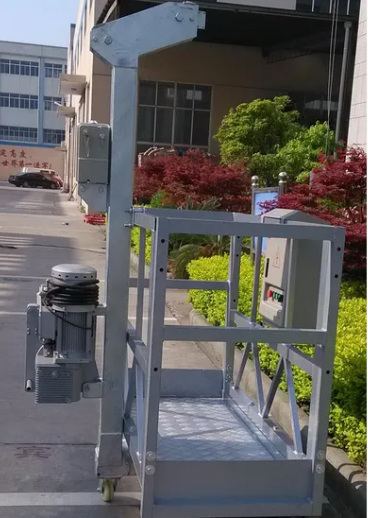

The single-person aluminum suspended platform is a versatile solution for safe and efficient access in high-rise building maintenance. Designed for tasks such as window cleaning, exterior painting and elevator installation, the platform is available in a variety of models, from ZLP300 to ZLP1000, with load capacities ranging from 300 kg to 1000 kg.
Made of lightweight and durable aluminum, the platform is easy to transport and install. It offers a range of platform widths (3m to 7.5m) and lifting speeds (7-11m/min) to meet different project needs. Hoist models range from LTD3 to LTD10, ensuring flexible operation.
The aluminum suspended platform is equipped with basic safety features such as safety locks, anti-tilt devices and optional overload protection to ensure safe working conditions for a single worker. It is CE, GOST, SII and UL certified to ensure compliance with international safety standards.
Ideal for exterior work such as glass and aluminum curtain wall cleaning, exterior wall insulation installation and general exterior wall maintenance, the platform provides reliable access at height.
| Parameter | Value |
|---|---|
| Model | ZLP300, ZLP500, ZLP630, ZLP800, ZLP1000 |
| Rated Load | 300kg to 1000kg |
| Rated Speed | 7-9m/min to 9-11m/min |
| Platform Width | 3m to 7.5m |
| Hoist | LTD3 to LTD10 |
| Wire Rope Diameter | 8.3mm to 8.6mm |
| Weight | Includes counterweight, platform, steel structure, and suspension mechanism |
| Electrical Parameters | Voltage: 220/380/400/415/440V (optional); Frequency: 50/60Hz; Three-phase |
| Safety Devices | Safety lock, anti-tilt device, overload device (optional) |
Features of Aluminum Suspended Platform For Single Person
Long service life: The platform is made of special aluminum material, gravity casting, high precision and durable.
Durable drive plate: The drive plate is made of 40Cr material, quenched and surface nitrided, with excellent wear resistance.
Reliable worm gear: The worm gear is made of tin phosphor bronze (9-4 copper), which has excellent toughness and wear resistance.
Wear-resistant rope guide: The rope guide is made of special wear-resistant stainless steel, ensuring smooth operation without damage or jamming.
Proven experience: With more than 30 years of manufacturing experience, ShenXi products have been safely used in more than 80 countries around the world.
Expert team support: A team of more than 20 engineers provides customized solutions, supported by a professional foreign trade team and global representatives.
Excellent after-sales service: ShenXi provides excellent after-sales support through its overseas representative network to ensure long-term customer satisfaction.
Advantages of Aluminum Suspended Platform For Single Person
Component Compatibility: All components of the ZLP250 are interchangeable with standard suspended platforms.
Optional accessories such as L-shaped end hooks and side frames can be added to create a ZLP250 platform.
Global Project Use: The Suspended Platform suspended platform has been used in international projects, including iconic landmarks such as the Burj Khalifa, Mandarin Oriental Jakarta, Guangzhou TV Tower and CCTV Tower in Beijing.
Durability: Made of high-quality aluminum and precision gravity casting, the platform has excellent durability and long service life even in harsh working conditions.
Application scenarios of Aluminum Suspended Platform For Single Person
Exterior wall insulation installation: Very suitable for safely installing exterior wall insulation systems on high-rise buildings, providing safe passage for workers.
Glass, aluminum panels and marble curtain wall installation: Used for the installation and maintenance of glass, aluminum panels or marble exterior walls in high-rise buildings.
Exterior wall painting and plastering: Suitable for painting and plastering the exterior walls of high-rise buildings, providing stable passage for workers.
Window cleaning: Provides a safe platform for window cleaning in high-rise buildings, providing smooth movement and stability.
FAQs of Aluminum Suspended Platform For Single Person
1. What is the load capacity of the single person aluminum alloy suspended platform?
Depending on the model, the load capacity of the platform ranges from 300kg to 1000kg.
2. What materials are used in the construction of the Suspended Platform?
Made of high-quality aluminum, the platform is produced by gravity casting for durability and high precision.
3. What safety features are included?
The platform is equipped with a safety lock, anti-tilt device and optional overload protection device to ensure safe operation.
4. Does Shenxi provide customized solutions for this Suspended Platform?
Yes, Shenxi provides customized services according to project needs and is supported by an experienced team of engineers.
5. What is the service life of the Suspended Platform?
The durable aluminum structure ensures a long service life, even in demanding conditions.
