Views: 0 Author: Site Editor Publish Time: 2026-07-15 Origin: Site
Specifying the correct load capacity for a temporary suspended platform dictates operational efficiency, structural integrity, and site safety. Miscalculating weight limits carries severe consequences on any job site. Under-specifying the capacity leads to mechanical strain, frequent safety lock tripping, and potential catastrophic failure. Over-specifying creates unnecessary logistical bottlenecks, requiring massive counterweights that can exceed the structural load limits of the building's roof or parapet.
Project managers, structural engineers, and procurement teams frequently struggle to accurately calculate dynamic loads. The challenge lies in balancing the combined weight of personnel, heavy tools, and material payloads against strict regulatory safety margins, rigging limitations, and structural building thresholds. A static calculation is rarely sufficient for dynamic site conditions.
Resolving this requires a systematic, engineering-backed framework for evaluating project requirements. By accurately calculating gross versus net working loads and understanding the physical limitations of hoists and rigging systems, teams can select the precise capacity classification for their access equipment, ensuring safety without compromising structural integrity.
Understanding capacity begins with strict engineering definitions outlined by international standards such as EN 1808, OSHA 1926.452, and ANSI A10.8. The Safe Working Load (SWL) or Rated Load is the maximum total weight the equipment is certified to lift and lower safely under normal operating conditions. This figure includes personnel, tools, materials, and the structural weight of the platform itself. The Ultimate Load Limit is the absolute breaking point of the equipment's weakest component. Equipment is never operated near the Ultimate Load Limit. The SWL is established by applying mandatory safety factors to the ultimate breaking strength to ensure a massive margin of error during daily operations.
The primary weight capacity of any suspended system is dictated by its traction hoists. Standard commercial hoists, such as the LTD63, LTD80, and LTD100 models, are engineered to lift 630kg, 800kg, and 1000kg respectively per unit. A standard platform utilizes two hoists, but the total system capacity is constrained by the structural frame and the suspension mechanism, not just the combined motor strength.
These hoists require specific wire rope configurations to function safely. Depending on the hoist model and capacity, systems utilize 8.3mm, 9.1mm, or 10.2mm galvanized steel ropes. The diameter and construction of the wire rope are directly correlated to the required SWL. Thicker ropes provide higher breaking strengths necessary for heavy-duty applications but add substantial dead weight to the system, which must be accounted for in deep-drop scenarios.
| Hoist Model | Rated Lifting Capacity | Typical Wire Rope Diameter | Primary Application |
|---|---|---|---|
| LTD50 | 500 kg | 8.3 mm | Light maintenance, inspection |
| LTD63 | 630 kg | 8.3 mm | Standard facade work, painting |
| LTD80 | 800 kg | 9.1 mm | Heavy glazing, masonry repair |
| LTD100 | 1000 kg | 10.2 mm | Elevator shafts, heavy cladding |
Industry standards categorize platform capacities into three primary tiers based on intended application and structural design.
Capacity ratings are governed by mandatory safety factor requirements designed to prevent catastrophic failure under dynamic stress. Regulatory bodies typically mandate a 4:1 safety factor for structural components, meaning the aluminum or steel platform frame must be able to withstand four times its rated SWL before structural failure. Wire ropes require a stricter 6:1 safety factor due to the friction and wear they experience passing through traction hoists. Furthermore, the roof rigging and counterweight systems must maintain a 3:1 stability factor against overturning, ensuring the rig remains anchored even if the platform experiences sudden dynamic shock loads.
Selecting the right capacity requires calculating the difference between the Gross Load Limit and the actual Net Payload Capacity. The Gross Load Limit is the total capacity of the hoists. However, the usable weight for workers and materials is significantly lower.
The calculation follows this framework:
Failing to subtract the dead weight of the equipment from the hoist's rated capacity is the most common cause of dangerous site overloading.
When calculating personnel weight, standardizing the assumed weight of a worker is vital. Engineering best practices dictate a conservative standard of 100kg (220lbs) per technician. This figure accounts for the worker's body weight plus complete fall-arrest gear, heavy tool belts, steel-toed boots, and hardhats. Assuming a lower weight per person drastically reduces the safety margin and can lead to accidental overloading when multiple fully equipped workers board the platform simultaneously.
A rigorous audit of materials and tools is required to prevent underestimating payloads. Project managers must calculate the exact weight of the specific materials being installed. Standard material weights add up rapidly. Architectural glass panels can weigh hundreds of kilograms. Stone tiles and wet mortar tubs create dense point loads. Heavy-duty rotary hammers or welding units add significant continuous weight. A precise inventory of all items that will be on the deck at any given time must be measured against the Net Payload Capacity.
| Material / Tool Type | Estimated Weight Range | Impact on Platform Load |
|---|---|---|
| Standard Glass Pane (Double Glazed) | 80 kg - 150 kg | High point load, requires careful distribution |
| Wet Mortar Tub (Full) | 120 kg - 200 kg | Dense, shifting weight; risk of spillage |
| Industrial Welding Unit | 40 kg - 90 kg | Static load, often placed near hoists |
| Stone Cladding Slab | 50 kg - 120 kg | Asymmetrical load risk during installation |
Several hidden factors consume available payload capacity and must be factored into the engineering calculations.
For routine maintenance, inspection, and cleaning tasks, the primary operational focus is on setup speed, rapid relocation across the roof space, and maintaining a low structural roof load. In these scenarios, a building facade platform with a capacity of 250kg to 500kg is optimal. A lightweight aluminum modular setup is preferred because it significantly reduces labor time during initial assembly and daily relocation. The lower capacity requirement means fewer counterweights are needed on the roof, reducing physical strain on the rigging crew and protecting delicate roof membranes from excessive point loads.
Construction applications require a completely different approach. The focus shifts to storing heavy materials on-board and safely handling multi-worker crews operating heavy machinery. A capacity of 630kg to 800kg is strictly recommended. Heavy cladding and glazing projects introduce the risk of asymmetrical loads. When a heavy glass pane or stone slab is shifted to one side of the platform for installation, the weight distribution becomes uneven. High-capacity systems are engineered with rigid structural frames that resist warping under these asymmetrical point loads, ensuring the platform remains stable and the hoists share the burden safely.

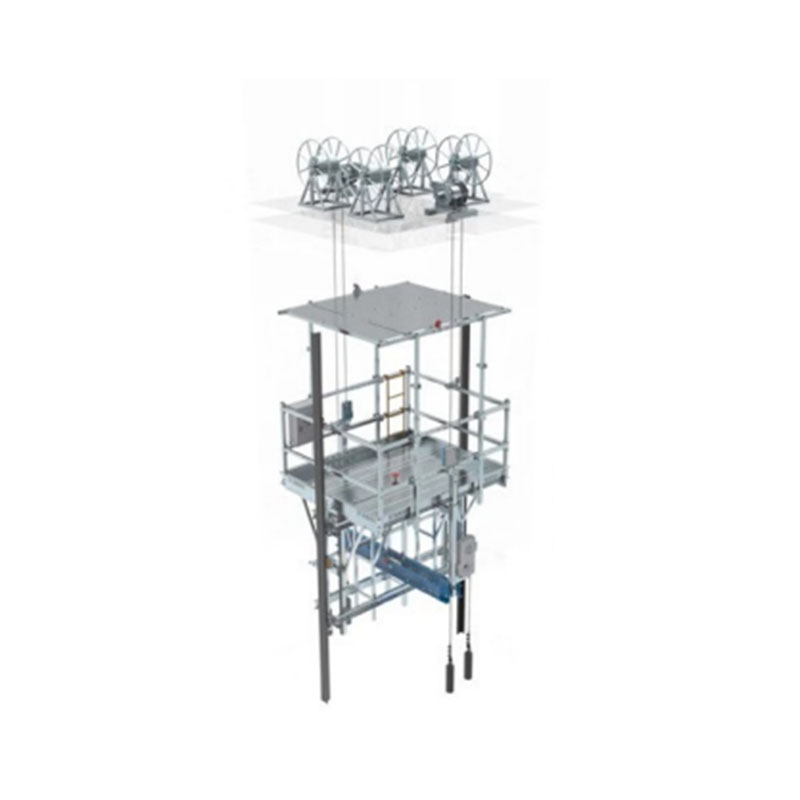

Working inside internal building shafts presents unique challenges. The focus here is on compact design, extreme height reliability, structural guiding, and the ability to handle massive point loads in a confined space. An elevator installation platform requires a heavy-duty capacity ranging from 800kg to 1000kg or more. Often referred to as false cars, these specialized platforms must carry heavy steel guide rail brackets, large welding units, and multiple technicians. Because they operate within the hoistway, they utilize specialized safety gear designed to interact directly with structural anchors or guide rails, demanding high-capacity hoists to manage the dense, concentrated weight of elevator components.
Selecting the highest possible capacity introduces severe logistical and structural burdens to a project.
Attempting to save rigging time by under-specifying the platform capacity introduces immediate and severe risks to the crew and the project timeline.
The physical connection between platform capacity and rigging outreach is a critical engineering calculation. The outrigger beam overhang—the distance the beam extends past the edge of the roof—directly impacts the system's stability. Increasing the overhang length increases the leverage acting against the counterweights. Therefore, a longer outreach effectively reduces the allowable SWL of the platform unless counterweights are exponentially increased. Rigging design must strike a precise balance between providing enough clearance from the building facade and maintaining the structural stability required for the desired load capacity.
Platform capacity assumes a relatively even distribution of weight. Localized heavy point loads—such as stacking all concrete blocks on one end of the deck—can warp the aluminum or steel platform frame, even if the total weight is under the hoist capacity. Strict guidelines must be enforced to distribute materials evenly along the platform floor. Workers must be trained to balance the deck, ensuring that neither hoist is forced to lift a disproportionate share of the load, which could lead to traction slippage or motor burnout.
Modern temporary access equipment mitigates capacity risks through advanced technology. The integration of load cell sensors and digital overload limiters provides real-time weight monitoring. These automated systems are wired directly into the hoist control box. If the sensors detect that the rated capacity is exceeded, the system automatically cuts off power to the upward movement contactors, physically preventing the platform from ascending until the excess weight is removed. This removes human error from the capacity equation.
Regulatory frameworks mandate strict testing protocols to verify load capacity before operations begin. Daily visual inspections must be paired with documented static structural load tests upon initial installation. Dynamic drop and stop tests are conducted to ensure the overspeed safety locks engage properly under full load conditions. These tests verify that the hoists, wire ropes, and roof rigging can handle the specified capacity safely before any worker steps onto the suspended deck.
Choosing the suitable load capacity is a precise engineering calculation. It requires balancing the rated hoist limits, the modular platform's self-weight, the specific operational payloads of the project, and the absolute structural limits of the roof suspension system. Ignoring any of these variables compromises safety and efficiency.
To ensure accurate specification, decision-makers should follow these next steps:
A: Exceeding capacity triggers mechanical overload sensors that instantly shut off the hoist motors, preventing upward movement. If sensors fail, overloading causes severe mechanical strain, potential brake slippage, accelerated wire rope wear, and structural deformation of the platform frame, leading to catastrophic failure and immediate site shutdowns by safety regulators.
A: Yes. Wire ropes and thick electrical power cables constitute dead load. This weight increases significantly at greater working heights and must be subtracted from the hoist's gross capacity to determine the actual net payload available for workers and materials.
A: A 250kg to 500kg light-duty aluminum platform is optimal for window washing. This capacity easily supports two workers and cleaning supplies while prioritizing rapid setup speed, easy relocation, and a significantly reduced counterweight footprint on the building's roof.
A: Use the standard stability formula: K = (W × B) / A × 3. 'W' is the total rated load plus dead load, 'B' is the front outreach distance, 'A' is the rear track length of the outrigger, and '3' represents the mandatory regulatory safety factor against overturning.
A: No. Upgrading hoists without upgrading the rest of the system is highly dangerous. The modular platform's structural frame, the diameter of the suspension cables, and the roof outrigger structures must all be engineered and certified to handle the increased load forces.
A: An 800kg to 1000kg rating is typical for elevator installations. This heavy-duty capacity is required to safely support the extreme weights of steel guide rails, heavy tools, welding equipment, and multiple technicians operating simultaneously within confined internal shafts.
A: Wind drag acts as an additional variable lateral and vertical force against the platform. This aerodynamic resistance forces hoists to work harder, reducing the operational safety buffer. Work must be stopped when wind speeds exceed specific regulatory thresholds, typically 14 m/s.
