| Quantity: | |
|---|---|

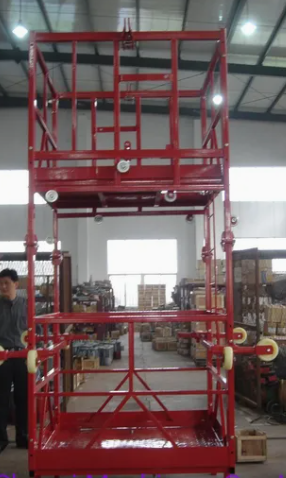

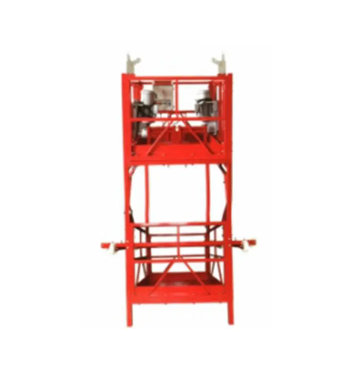

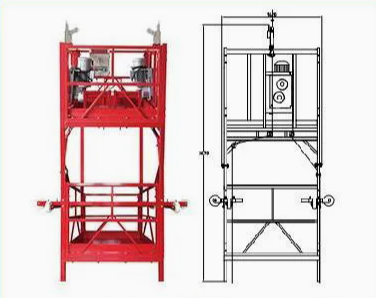

The Suspended Platform For Elevator Installation by ShenXi is designed for high-altitude construction, maintenance, and cleaning tasks. It is widely used for projects such as facade installations, window cleaning, and applying insulation layers.
The platform supports rated loads from 300kg to 1000kg, with rated speeds ranging from 79m/min to 911m/min. It is available in platform widths of 3m to 7.5m, making it adaptable to various project requirements.
Built with high-quality materials, the platform's aluminum and steel components ensure durability. The driving disc, made from 40Cr and treated for enhanced wear resistance, and the tin-phosphor bronze worm gear provide longevity and consistent performance.
The platform is equipped with safety features, including a safety lock, anti-tilt device, and optional overload protection. Its electrical system supports multiple voltages (220/380/400/415/440V) and frequencies (50/60Hz), ensuring versatility across global markets. Certified by ISO 9001, it guarantees high standards of safety and reliability.
| Parameter | Value |
|---|---|
| Product Name | Suspended Platform For Elevator Installation With CE Certificate |
| Company Name | ShenXi |
| Model | ZLP300, ZLP500, ZLP630, ZLP800, ZLP1000 |
| Rated Load | 300kg to 1000kg |
| Rated Speed | 79m/min to 911m/min |
| Platform Width | 3m to 7.5m |
| Electric Unit | LTD3 to LTD10 |
| Steel Wire Rope Diameter | 8.3mm to 8.6mm |
| Weight | Includes counterweights, aluminum/steel platform, suspension mechanism |
| Electrical Parameters | Voltage: 220/380/400/415/440V (optional); Frequency: 50/60Hz; Three-phase |
| Safety Devices | Safety lock, anti-tilt device, overload device (optional) |
| Certification | ISO 9001 |
| Applications | Glass and aluminum curtain walls, facade painting and plastering, insulation installation, window cleaning |
Features of Suspended Platform With Ce Certificate
Widely used: Suitable for building facade construction, decoration, cleaning and maintenance. Used in international projects such as Burj Khalifa and CCTV Tower.
Long service life: Made of special aluminum alloy, gravity casting for improved precision and durability.
Durable drive plate: Made of 40Cr material, quenched and surface nitrided for enhanced wear resistance.
Reliable worm gear: Made of tin phosphor bronze (9-4 copper), it has excellent toughness and wear resistance.
Smooth rope guide: Made of special wear-resistant stainless steel material to prevent damage and ensure smooth operation.
Advantages of Suspended Platform With Ce Certificate
Improved Efficiency: The suspended platform simplifies elevator installation and maintenance tasks, providing workers with a stable, safe working surface, which increases productivity and reduces downtime.
CE Certified: This suspended platform meets the strict standards set by the European Union, ensuring high quality and compliance with safety regulations for international projects.
High Load Capacity: Designed to carry heavy loads, the platform can support multiple workers and equipment, ensuring that all necessary tools are available for the job at hand.
Versatile Uses: The suspended platform is not limited to elevator installation; it is also suitable for general building maintenance, facade cleaning, and exterior work on skyscrapers and high-rise buildings.
Low Maintenance Costs: Made of durable materials such as aluminum alloy and stainless steel, the suspended platform requires little maintenance and is very resistant to wear and tear.
Application scenarios of Suspended Platform With Ce Certificate
Glass aluminum panel or marble curtain wall: Applicable to the installation, maintenance and cleaning of exterior wall covering systems such as glass, aluminum panel or marble curtain wall in high-rise buildings.
Exterior wall painting and plastering: Applicable to painting, plastering and other surface treatments of building facades.
Exterior wall insulation installation: Used to safely install exterior wall insulation systems on high-rise buildings to improve energy efficiency.
Window cleaning: Provide safe and stable access for window cleaning in high-rise buildings, allowing workers to reach difficult-to-access areas.
General facade maintenance: Efficiently complete various building facade maintenance tasks such as repairs and inspections, ensuring easy access to difficult-to-reach areas.
FAQs of Suspended Platform With Ce Certificate
1. Is the suspended platform safe to use on high-rise buildings?
Yes, the suspended platform is equipped with a variety of safety features, including a non-slip platform, a safety locking mechanism, and a sturdy safety rope to ensure stable and safe operation at height.
2. Can this platform be used for indoor and outdoor work?
While the suspended platform is primarily designed for exterior work such as elevator installation, exterior wall cleaning and maintenance, it can also be used for some indoor applications depending on the building layout.
3. Is there any special training required to use the suspended platform?
Yes, it is recommended that operators receive basic safety training and platform operation training to ensure safe and efficient use, especially when working at height.
4. What is the service life of the suspended platform?
Designed for long-term use, the suspended platform has a durable frame and components that can provide years of service life even in harsh conditions.
5. Can the suspended platform be customized for specific projects?
Yes, ShenXi can provide customization options based on the specific requirements of your project, including adjusting the platform size, load capacity, and additional safety features.
