Views: 0 Author: Site Editor Publish Time: 2026-07-09 Origin: Site
Vertical access in commercial construction dictates site safety, labor productivity, and project timelines. Choosing the wrong equipment introduces severe operational risks. Payload bottlenecks slow down material delivery, while rigging failures endanger lives and damage structures. Regulatory compliance violations halt projects entirely, leading to missed deadlines and compromised site integrity. You need a reliable system to move workers, tools, and heavy materials efficiently across complex building exteriors.
Selecting the right construction suspended platform requires a systematic, evidence-based framework. You must evaluate site requirements, compare structural configurations, and align the equipment with specific architectural demands. This guide provides the technical criteria needed to specify, rig, and operate suspended access equipment safely and efficiently on your next project, ensuring your crew maintains maximum productivity without compromising on mandatory safety standards.
Complex architectural features dictate your equipment configuration. Overhangs, deep balconies, and curved structures prevent standard straight platforms from sitting flush against the work surface. You must map the building footprint to identify where standard modular units will fail. Recessed facades often require specialized angled platforms or negative-pressure systems to keep workers close to the wall. When dealing with a 15-foot balcony setback, standard outrigger beams will not provide enough reach, requiring custom-engineered cantilever solutions.
When specifying a high rise suspended platform, extreme height introduces new variables. Wind load calculations become critical. You must manage extensive wire rope lengths to prevent tangling and account for power cable voltage drop over long vertical runs. High-altitude wind dynamics, such as the Venturi effect between adjacent towers and unpredictable building pocket winds, severely impact platform stability. A platform operating at 40 stories experiences significantly different wind shear than one at 5 stories.
Sway prevention is mandatory for high-elevation work. You must evaluate stabilization systems based on the facade type. Wire rope stabilizers limit lateral movement. Building face rollers protect glass and allow smooth vertical travel. Suction cup tie-backs secure the platform directly to non-porous surfaces during stationary work phases. Using non-marking polyurethane rollers ensures the building exterior remains undamaged while providing a rigid standoff distance for the crew.
Calculating the Safe Working Load (SWL) is the foundation of platform selection. You must differentiate between static and dynamic loads. Static loads include the platform weight, hoists, and rigging hardware. Dynamic loads encompass personnel movement, material hoisting, and wind resistance. Underestimating dynamic loads leads to hoist strain and potential structural failure. A standard 1000 lb SWL platform can quickly become overloaded if three workers and a pallet of wet mortar are loaded simultaneously.
Multi-hoist configurations face the physics of asymmetric load distribution. If materials are stacked on one side of a long platform, one hoist bears a disproportionate amount of weight. You must plan material staging zones to keep the load balanced. Overloading one side triggers anti-tilt safety locks, halting work and requiring manual leveling. Implementing a strict material loading protocol ensures that heavy items like glass panels or steel brackets are centered.
You must also account for the weight of the trailing power cables and wire ropes on extreme drops. At 500 feet, the weight of the steel wire rope itself adds significant load to the hoists. This dead weight reduces the available payload capacity for workers and tools, requiring a higher-rated hoist system to compensate.
The structural integrity of the roof determines your rigging options. You must conduct structural engineering assessments for parapet walls and roof slabs before selecting equipment. A platform is only as safe as its anchor points. Weak parapets cannot support clamp systems, and thin roof slabs cannot bear concentrated counterweight loads. A 4-inch concrete roof deck may require load-spreading dunnage beneath the outrigger stands to prevent punching shear failures.

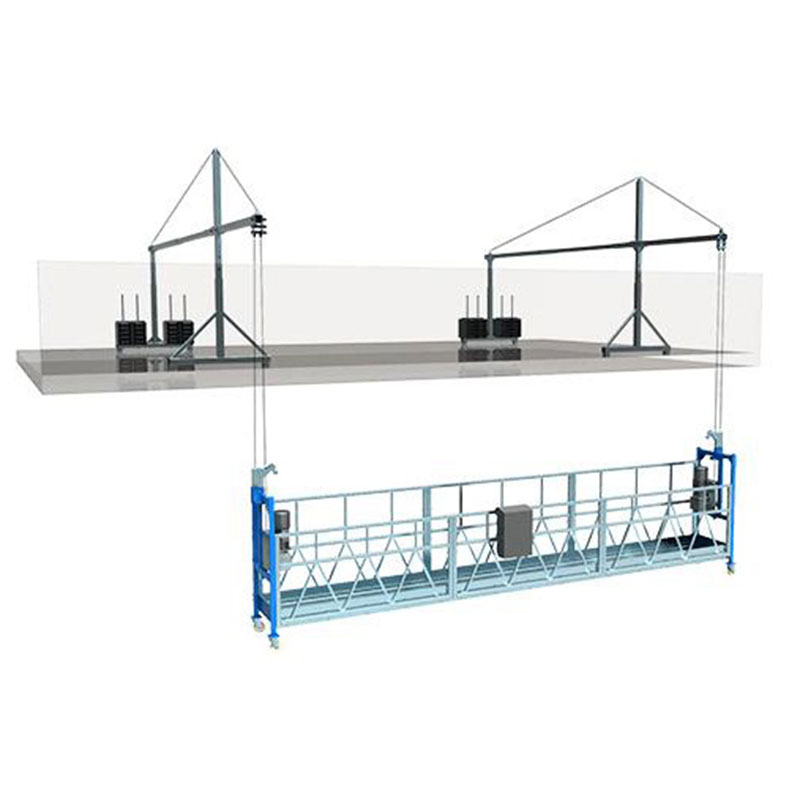

Space constraints dictate rigging feasibility. You must outline the spatial requirements for counterweights, outrigger beams, and parapet clamps. Outrigger beams require sufficient setback distance to achieve the correct leverage. Counterweight calculations rely on strict engineering mathematics, applying a mandatory 4:1 safety factor formula to prevent tipping. If the roof is crowded with HVAC equipment, finding a clear 15-foot run for an outrigger beam becomes a major logistical hurdle.
Compare your rigging anchor alternatives carefully. Outrigger beams offer flexibility on flat roofs but require heavy counterweights. Parapet clamps eliminate counterweights but demand structurally sound walls. Custom-engineered tieback points provide the highest security but require integration into the building's structural frame during early construction phases. Always verify that the tieback cables are rigged to structural steel or engineered concrete pillars, never to roof vents or piping.
Modular aluminum platforms offer rapid deployment and high scalability. You can assemble them in various lengths, typically from 1 to 12 meters, to suit standard building footprints. However, non-standard architecture often necessitates custom-engineered steel solutions. You must weigh the trade-offs between weight, assembly time, and structural rigidity. Modular systems use quick-connect pins, allowing a two-man crew to assemble a 30-foot deck in under an hour.
Material-to-trade compatibility drives this decision. Heavy-duty galvanized steel withstands the abuse of hot-work, welding, and heavy masonry. Lightweight aluminum is ideal for glazing, painting, and inspections where material weight is low and rapid repositioning is required. Dropping a heavy steel beam onto an aluminum deck can cause structural deformation, whereas a steel deck absorbs the impact.
| Feature | Modular Aluminum Platform | Custom Steel Platform |
|---|---|---|
| Weight Profile | Lightweight, easy to transport via service elevator | Heavy, requires mechanical lifting or crane picks |
| Assembly Method | Fast, uses standard locking pins and bolts | Slow, often requires specialized tools and torquing |
| Corrosion Resistance | Naturally resistant to oxidation | Requires hot-dip galvanization or industrial coating |
| Primary Application | Glazing, painting, light maintenance, inspections | Masonry, welding, heavy demolition, concrete repair |
Exterior finishing requires specialized equipment. A dedicated facade work platform is designed specifically for glazing, masonry, or exterior insulation finishing systems (EIFS). These platforms feature specific stand-off rollers and soft bumpers to prevent building damage while keeping workers at the optimal ergonomic distance from the wall. For window installation, the platform must accommodate the dimensions of the glass panels without restricting worker movement.
Material staging areas are integrated into these platforms to optimize workflow. For recessed facades or hard-to-reach niches, negative-pressure wall access solutions use suction to pull the platform against the building. This eliminates the pendulum effect and allows precise work on complex architectural profiles. When working on a building with deep architectural fins, standard platforms cannot reach the inner wall, making specialized narrow-deck configurations mandatory.
Double-deck platforms allow two trades to work simultaneously on different levels. For example, a caulking crew can work on the lower deck while a panel installation crew works on the upper deck. This configuration requires heavy-duty hoists and strict load management but drastically accelerates the project schedule.
Single-point platforms, such as bosun chairs or small work cages, are designed for localized repairs and confined spaces. They fit into narrow shafts and between tight architectural fins. However, they lack the capacity for heavy materials and limit productivity to one worker. A single-point cage is ideal for inspecting a specific structural joint but inefficient for full-scale facade replacement.
Two-point and multi-point suspended scaffolds provide wide-area coverage. They allow multiple tradesmen to work simultaneously. Multi-point systems require precise synchronization between multiple hoists to keep the deck level. Advanced central control boxes manage this synchronization, automatically adjusting hoist speeds to maintain horizontal alignment. If one hoist pulls faster than the others, the deck tilts, triggering the secondary safety locks and halting operations.
Corner platforms utilize a multi-point suspension setup to wrap around the edge of a building. This allows continuous work across two faces of the structure without needing to dismantle and re-rig the equipment. Rigging a corner platform requires complex outrigger placement to ensure the suspension ropes drop perfectly vertical to the hoist attachment points.
Hoist selection depends on site power availability, duty cycles, and environmental conditions. Electric traction hoists are the industry standard for general construction. Pneumatic hoists are mandatory in explosive environments, such as chemical plants or refineries, where electrical sparks pose a severe hazard. An air-powered hoist requires a massive on-site compressor and heavy air hoses, changing the logistical setup entirely.
Ascent and descent speed ratings directly impact labor efficiency. Slow hoists waste valuable working hours on extreme high-rise projects. You must balance speed with safety and power draw. Standard hoists travel at roughly 30 feet per minute. Upgrading to high-speed hoists can cut travel time in half, saving hundreds of labor hours over a year-long project.
Power management over extreme vertical runs requires careful planning. You mitigate voltage drop by using booster transformers, heavy-gauge SOOW power cables, and phase selector switches at the platform level. If a 220V hoist only receives 190V due to cable resistance over a 400-foot drop, the motor will overheat and fail prematurely. Testing voltage at the platform under load is a mandatory daily check.
Safety features are non-negotiable. Every platform must include overspeed limiters, slack rope safety devices, and anti-tilt mechanisms. If the primary hoist fails or the platform tilts beyond a safe angle, these mechanical locks instantly grip the secondary safety wire rope, preventing a fall. The block stop mechanism must be tested daily to ensure the jaws engage the wire rope without slipping.
Secondary wire ropes and independent fall arrest systems provide critical redundancy. Workers must tie off to independent lifelines anchored to the roof, not to the platform itself. If the entire platform system fails, the workers remain suspended by their personal fall arrest systems. These lifelines must be protected from sharp parapet edges using heavy-duty rope guards.
You must also analyze emergency override protocols. In the event of a total power loss, hoists must feature manual mechanical descent controls, allowing operators to safely lower the platform to the ground. The manual descent lever releases the electromagnetic brake, using a centrifugal governor to control the downward speed. Operators must be trained on this specific procedure before stepping onto the platform.
Environmental conditions dictate material selection. Galvanized steel offers superior operational lifespan in heavy industrial sites but is susceptible to rust if the coating is compromised by grinding or welding spatter. Extruded aluminum excels in coastal projects due to its natural resistance to saltwater corrosion. Inspecting aluminum welds for micro-cracks is a critical maintenance task, as aluminum fatigues differently than steel.
Electrical components must withstand severe weather. You must verify the Ingress Protection (IP) ratings for electrical control boxes. High IP ratings, such as IP65, ensure that rain, dust, and debris cannot penetrate the circuitry, preventing short circuits and unexpected power failures during operation. A control box with a low IP rating will fail after the first heavy rainstorm, leaving the crew stranded.
Wire rope durability is another major factor. Standard 5/16-inch galvanized wire rope must be inspected for broken wires, bird-caging, and severe kinking. Dragging wire ropes over concrete edges strips the galvanization and accelerates rust. Proper spooling and storage of wire ropes extend their lifespan and ensure they pass safety inspections.
Compliance documentation is required before any equipment operates on site. You must ensure the system meets OSHA 1926 Subpart L in the US, EN 1808 in Europe, or strict local equivalents. Missing documentation leads to immediate site shutdowns and severe penalties. Every hoist, wire rope, and platform section must have a visible data plate indicating its load rating and serial number.
Manufacturer certifications, third-party load testing reports, and serialized component tracking prove the equipment's integrity. You must define strict pre-shift checklist requirements and daily logging protocols. Mandatory structural load testing intervals must be scheduled and documented by certified personnel to maintain compliance throughout the project lifecycle. A logbook must remain on the platform at all times, detailing the daily inspections and any maintenance performed.
Rigging plans must be stamped by a licensed structural engineer. The engineer verifies that the building structure can support the concentrated loads applied by the outrigger beams and tie-back cables. Attempting to rig a platform without an engineered plan is a direct violation of safety regulations and exposes the project to massive liability.
Deciding between renting and purchasing requires a detailed logistical framework. Short-term rentals eliminate long-term storage requirements and maintenance burdens. Renting is ideal for specialized projects or temporary needs where the equipment will not be used again for months. Purchasing makes sense for contractors who consistently perform facade work and have the infrastructure to manage an equipment fleet.
You must factor in hidden operational logistics. Ownership requires dedicated warehouse space, transportation logistics to and from sites, and ongoing maintenance. Wire ropes degrade and must be replaced regularly. Hoists require annual recertification and tear-down inspections by certified mechanics. Renting shifts these maintenance and storage burdens back to the equipment provider, ensuring you always receive freshly inspected gear.
Managing a fleet of platforms requires a dedicated inventory tracking system. You must track which hoists are on which job site, when their annual inspections are due, and the condition of the modular deck sections. Mixing and matching components from different manufacturers is strictly prohibited by safety standards, so inventory control is critical.
Labor hours associated with assembling, rigging, and dismantling significantly impact project schedules. Heavy, complex platforms require more manpower and crane time to position on the roof. You must analyze the setup time required for different platform types. A crew of four might take two full days to rig a complex steel corner platform, delaying the start of actual facade work.
Investing in a lighter, modular system often yields a strong return in labor efficiency through reduced daily setup times. When a crew can assemble and drop a temporary access platform in hours rather than days, overall labor efficiency increases, and facade work begins sooner. Quick-connect pins and lightweight aluminum sections allow workers to move the platform between drops without needing a crane.
Dismantling the platform at the end of the project presents its own challenges. Wire ropes must be carefully unreeled and coiled to prevent kinks. Counterweights must be transported back down the service elevator, which often requires multiple trips due to weight limits. Planning the dismantling phase during the initial rigging setup prevents logistical bottlenecks at the end of the job.
Suspended operations are highly vulnerable to weather. Wind shear, lightning, and extreme temperatures pose severe risks. High winds turn platforms into dangerous pendulums, threatening workers and the building facade. Lightning strikes are drawn to metal platforms and wire ropes, creating a fatal hazard for anyone on the deck.
You must establish strict protocols for wind-speed thresholds. Work must halt when winds exceed manufacturer or regulatory limits. Use wire rope stabilizers or building ties on high-rise configurations to restrict movement. Monitor weather radar constantly and lower platforms to the ground before severe storms hit. Installing an anemometer on the roof provides real-time wind data to the site superintendent.
Extreme cold affects the performance of hoist motors and wire rope flexibility. Ice buildup on the wire ropes prevents them from passing through the hoist traction mechanism, causing the system to jam. In freezing conditions, hoists must be covered, and wire ropes must be inspected for ice accumulation before operation.
Human error in daily operations and rigging causes the majority of accidents. You must designate a "Competent Person" to oversee installation, conduct daily pre-shift inspections, and manage emergency rescue procedures. This individual must have the authority to stop work if hazards are identified. The competent person must understand the specific mechanics of the hoists and the engineering behind the rigging plan.
Suspension trauma is a critical hazard if a worker falls and is left hanging in a harness. You must develop an actionable, site-specific suspension rescue plan. The plan must detail exactly how to retrieve a fallen worker within minutes to prevent restricted blood flow and fatal trauma. Relying solely on the local fire department is unacceptable; the site crew must have the gear and training to perform a self-rescue or assisted rescue immediately.
Operators must be trained on load management. They need to understand how to distribute materials evenly across the deck and recognize the warning signs of an overloaded hoist. Training should also cover the proper use of the manual descent lever and how to reset the secondary safety locks if they engage accidentally.
Transporting heavy rigging components to the roof level presents logistical risks. Counterweights and outriggers often exceed the capacity of standard service elevators. You must coordinate crane schedules or utilize heavy-duty material hoists to move this gear efficiently. A single 50 lb counterweight is easy to carry, but moving 200 of them requires a coordinated material handling plan.
Initial drops are prone to wire rope tangling and power cable snags. You must implement mitigation strategies, such as using cable guides and assigning spotters on lower floors. Unspooling wire ropes carefully and managing cable tension prevents kinks that would require immediate rope replacement. A kinked wire rope loses its structural integrity and cannot be repaired; it must be discarded.
Protecting the building facade during the initial drop is critical. Wind can blow the empty platform against the glass, causing severe damage. Using taglines from the ground allows workers to control the platform's sway as it is lowered for the first time. Once the platform reaches the ground, the wire ropes can be tensioned and the building face rollers adjusted.
The optimal suspended access solution balances structural geometry, payload requirements, and uncompromising safety standards. Ignoring any of these factors jeopardizes your project and your crew. You must match the equipment to the specific demands of the building and the trade performing the work.
A: Regulatory limits and manufacturer specifications typically restrict operation when wind speeds exceed 25 mph (40 km/h). Operating above these thresholds risks severe platform sway, structural damage, and personnel safety. Always consult the specific manufacturer's manual and local safety regulations, as some sites require lower thresholds.
A: A designated competent person must perform and document a visual pre-shift inspection every day before use. Additionally, periodic documented inspections by certified technicians are required, usually every 6 to 12 months, covering hoist mechanics, wire rope integrity, and electrical systems.
A: A standard scaffold is ground-supported, built upward from the base, and suited for lower elevations. A facade work platform is top-hung, suspended by wire ropes from roof rigging. Suspended systems are essential for high-rise exterior finishing where ground support is impossible.
A: Counterweight calculations use a mandatory 4:1 safety factor. The formula considers the platform's total suspended load, the length of the outrigger beam extending over the roof edge, and the distance from the fulcrum to the counterweights. A structural engineer must verify these calculations.
A: Yes, but standard outrigger beams with counterweights often fail on sloped surfaces. You must use specialized rigging solutions like parapet clamps, custom roof hooks, or tie-back anchors engineered directly into the roof's structural frame to ensure stability.
A: Most industrial traction hoists require a 220V or 380V 3-phase power supply. You must ensure the site can deliver consistent voltage. For extreme heights, step-down or booster transformers are used to compensate for voltage drop along the power cable.
A: Workers must wear full-body harnesses attached to independent vertical lifelines. These lifelines must be anchored to secure points on the roof, completely separate from the platform's rigging. Rope grabs connect the harness lanyard to the lifeline, arresting any fall instantly.
