What Is A Loading Platform?

A loading platform is an essential external platform designed to efficiently move construction materials between ground level and upper floors during floor-by-floor building projects. At Shenxi Machinery, we specialize in designing and manufacturing high-quality loading platforms, ensuring construction teams have safe, reliable, and efficient solutions for material handling on any project. Understanding what a loading platform is, how it works, and how to choose the right type can save time, reduce crane cycles, and enhance site safety.

Quick Definition and Where You See Them

What Exactly Is a Loading Platform?

A loading platform is a pre-engineered platform attached to the edge of a building or lifted via crane systems to facilitate material movement. These platforms are temporary but robust structures, capable of supporting heavy materials while ensuring worker safety. They are specifically designed to handle repetitive loading and unloading tasks, reducing reliance on internal hoists or elevators. Some platforms are modular, allowing adaptation to a range of building geometries and construction schedules.

Typical Project Stages and Building Types

Loading platforms are most commonly used in high-rise construction projects, particularly those following slab-by-slab or floor-by-floor methods. They are often employed when building concrete cores, installing curtain walls, or handling exterior façade work. On large commercial or residential towers, these platforms act as staging areas for bulk materials such as steel reinforcement, concrete buckets, palletized bricks, or mechanical and electrical equipment.

Main Types & How They Differ

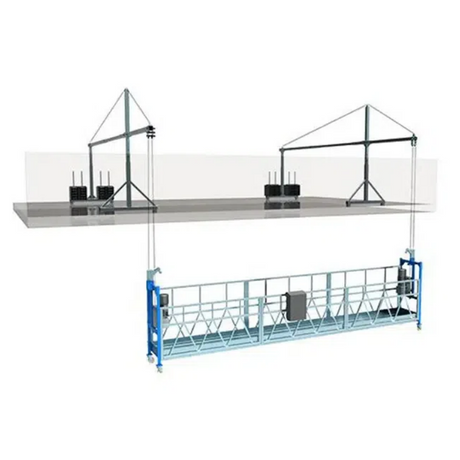

Crane or Hoist-Assisted Loading Platforms

Crane-lift platforms are suspended from tower cranes or mobile cranes, providing a flexible solution for vertical material transport. These platforms can be moved between floors with minimal effort and allow operators to position heavy materials precisely where needed. Their mobility is especially beneficial on complex construction sites with uneven load requirements or multiple active floor levels.

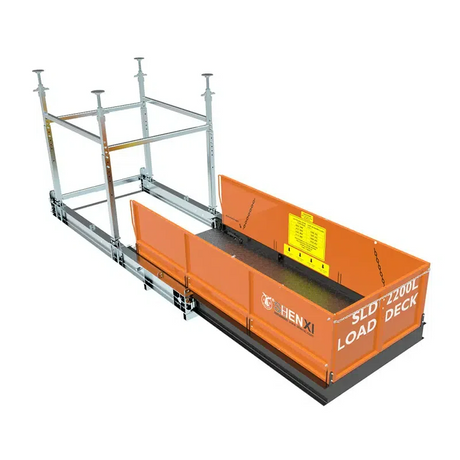

Cantilever or Clamp-On Loading Platforms

Cantilever loading platforms are fixed to the edge of a building slab, usually by clamping onto the structural concrete or steel framework. Unlike crane-lift platforms, these systems are stationary during a floor cycle but provide excellent stability and weight capacity. They are ideal for projects where repeated unloading at the same location is required, such as continuous façade installation or slab reinforcement.

Multi-Level or Modular Loading Platforms

Multi-level or modular loading platforms are designed for tight urban sites or complex building footprints. These systems can be stacked vertically or arranged in modular configurations, allowing materials to be staged across multiple floors simultaneously. Modular designs also enable customization of platform width, length, and load capacity to match project-specific needs without compromising safety.

Core Components & Technical Features to Check

Frame, Platform Deck, Guardrails, and Safety Doors

The structural frame forms the backbone of any loading platform. It must support the platform deck, which bears the load of materials and personnel. Guardrails and safety gates are mandatory to prevent falls, and the design of safety doors ensures that materials can be loaded and unloaded without compromising worker protection. Regular inspection of these components is crucial to maintain structural integrity throughout the construction period.

Crane Attachment Points, Lifting Lugs, and Locking Mechanisms

For crane-assisted platforms, reliable attachment points and lifting lugs are essential. They must meet manufacturer specifications and support the maximum rated load without risk of failure. Locking or clamping mechanisms ensure that once in place, the platform remains stable, preventing accidental displacement due to wind or uneven loading.

Load Capacity Plates, Tie-Backs, and Fall Protection Anchors

All loading platforms carry a clearly marked load capacity plate, indicating maximum permissible loads for both materials and personnel. Tie-backs, which anchor the platform to the building structure, provide additional stability and prevent sway. Fall protection anchor points must be integrated to allow personnel to secure themselves safely while working at heights.

Primary Uses and Workflow Benefits

Material Transfer

Loading platforms are primarily used to transfer bulk materials and palletized loads from ground level to upper floors. They reduce reliance on internal hoists, elevators, or manual carrying, speeding up construction workflows. Whether it’s concrete buckets, steel beams, or mechanical equipment, platforms allow precise placement directly at the point of use, reducing handling errors and delays.

Temporary On-Site Storage at Working Level

Besides vertical transport, loading platforms act as temporary storage areas or staging zones. Materials can be safely stored at working height, ready for immediate use. This setup minimizes congestion in stairwells, elevators, or lower floors, enabling smoother material flow and preventing bottlenecks on site.

Speed, Reduced Internal Handling, and Crane Cycle Efficiency

By combining material transfer with temporary storage, loading platforms significantly increase operational efficiency. Fewer crane cycles are required, reducing wear on machinery and lowering operational costs. Internal handling is minimized, which not only saves time but also reduces the risk of damage to materials or equipment during transport.

Safety, Compliance & Who Is Responsible on Site

Importance of Manufacturer Instructions and Competent Person Sign-Off

Loading platforms are temporary but critical structures, and their safe use depends on strict adherence to manufacturer guidelines. A competent person, often a site engineer or temporary works supervisor, must approve installation, verify load ratings, and ensure proper anchorage. Neglecting this step can result in accidents or costly delays.

Integration Into Temporary Works and Site Safety Plans

Platforms must be incorporated into overall site safety and temporary works plans. Their position relative to scaffolding, edge protection, and crane operation zones should be carefully coordinated. Regular inspections and compliance checks are essential to ensure ongoing safety, especially on sites with changing load requirements or multiple contractors operating simultaneously.

Quick Selection Checklist for Buyers

Required Platform Area and Rated Load

Determine the required platform size and maximum load, considering both material type and personnel. It’s critical that the selected platform matches or exceeds the lifting capacity of the available crane or hoist system to prevent structural stress or accidents.

Building Edge Detail and Anchorage Conditions

Verify the building’s edge design and structural conditions to confirm the platform can be safely anchored. Some projects may require additional tie-backs, support brackets, or reinforcement to accommodate platform loads safely.

Local Regulations and Temporary Works Approvals

Different regions have distinct temporary works and occupational safety requirements. Ensure compliance with local construction regulations, approvals, and inspection procedures. Proper documentation reduces risk and helps secure insurance coverage for construction activities.

Conclusion

A loading platform is an indispensable tool for efficient material handling on modern construction sites. By providing safe vertical transport, temporary storage, and workflow optimization, these platforms enhance both productivity and site safety. At Shenxi Machinery, we offer a wide range of loading platforms designed to meet the highest safety and performance standards. Our experts can guide you in selecting the right solution for your project, ensuring compliance and operational efficiency. Contact us today if you need a detailed specification checklist or a downloadable inspection template for your construction site.
